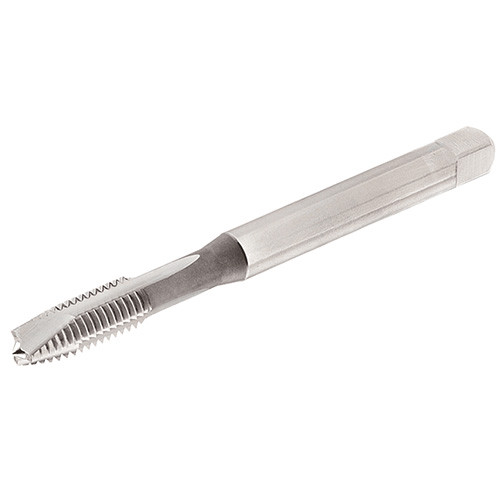

| Thread Diameter Size (TDZ) | MF18 | Tool Type | Machine Through Hole Taps |
| Thread Pitch (TP) | 1.5 mm | Coating | TiN |
| Thread Standard | THFT | | Drive Size (DRVS) | 11 mm |

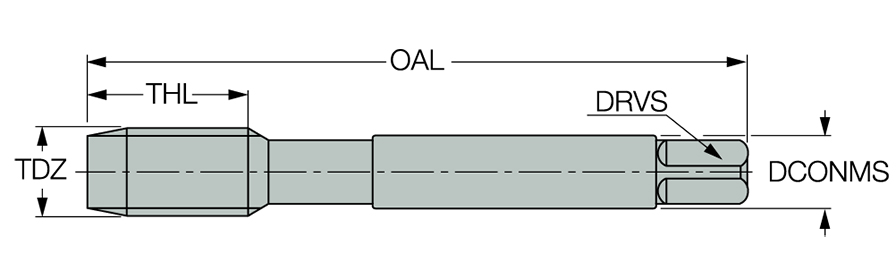

| Overall Length (OAL) | 110 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 20 mm | Grade | HETI |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Thread Size | MF18 × 1.5 |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Thread Form Type (THFT) | M60 |
| Cutting Edge Material | HSS | Unit | M |
| Standard | DIN 374 |
Product Features
| Family Description | DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Fine Threads for a Wide Range of Materials | COO | Hungary |
Shipping Info
Weight per item
0.1380
