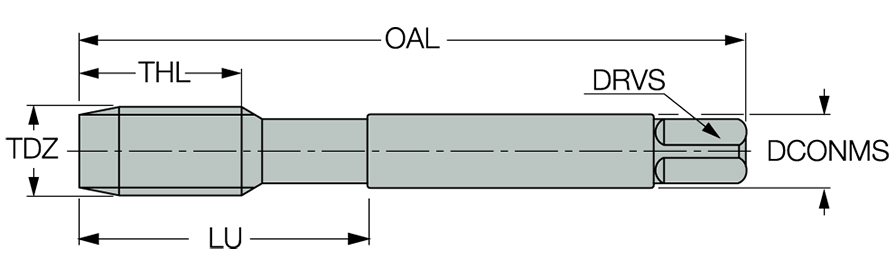

| Thread Size | M2.5 × 0.45 | Connection Diameter Machine Side (DCONMS) | 2.8 mm |
| Thread Diameter Size (TDZ) | M2.5 | Thread Cutting Part Length (THL) | 9 mm |
| Thread Pitch (TP) | 0.45 mm | Drive Size (DRVS) | 2.1 mm |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Grade | PMTC |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Unit | M |
Product Features
| COO | Hungary |
Shipping Info
Weight per item
0.0120
