TPSN MF-12X1.5-M HETI

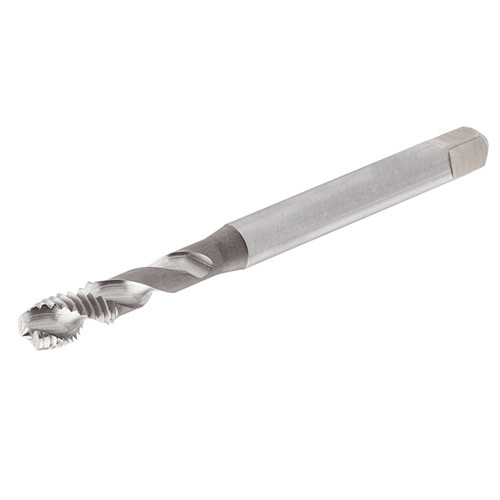

DIN 13 HSSE 5% Co Spiral Flute Machine Taps. ISO Metric Fine Threads for a Wide Range of Materials
Price: Log in For Price

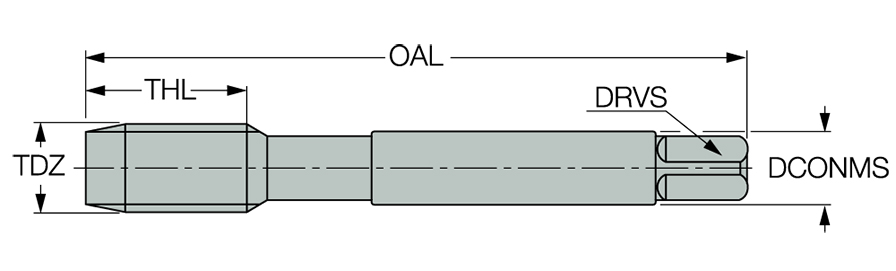

| Thread Diameter Size (TDZ) | MF12 | Coating | TiN |
| Thread Pitch (TP) | 1.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 100 mm | Grade | HETI |
| Thread Cutting Part Length (THL) | 18 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Body Material | HSS |
| Flute Count (NOF) | 4 | Drive Size (DRVS) | 7 mm |
| Cutting Edge Material | HSS | Thread Size | MF12 × 1.5 |
| Standard | DIN 374 | Unit | M |
| Tool Type | Machine Blind Hole Taps |
Product Features
| Family Description | DIN 13 HSSE 5% Co Spiral Flute Machine Taps. ISO Metric Fine Threads for a Wide Range of Materials | COO | Hungary |
Shipping Info
Weight per item
0.0540
