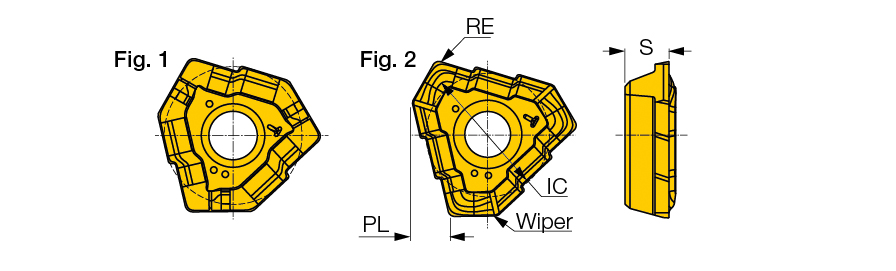

| Insert Thickness (S) | 4.3 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Inscribed Circle Diameter (IC) | 11.59 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.5 mm | Tool Type | Gun Drill Inserts |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | IC08 | Body Material | Carbide |
| Application | | Deep Drilling | Drilling | Gundrills | | Unit | M |
Product Features

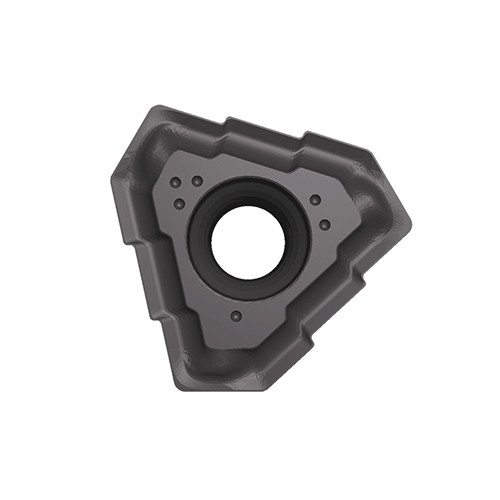

| Family Description | Deep drilling inserts with 3 chip splitting cutting edges, a positive rake chipbreaker and a wiper for high hole surface quality. | COO | Israel |
Shipping Info
Weight per item
0.0073
