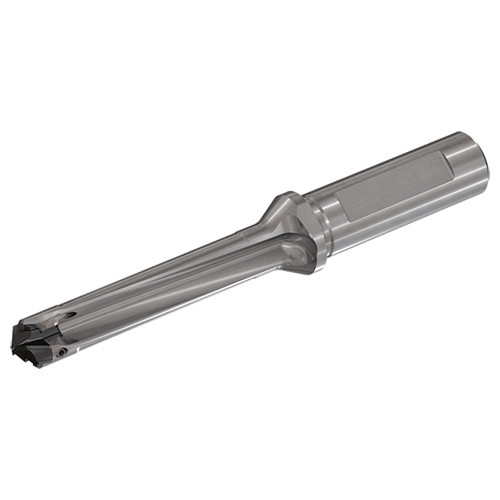

DLN 180-090-25A-5D
Exchangeable head drills with screw lock system for interrupted drilling applications
Price: Log in For Price

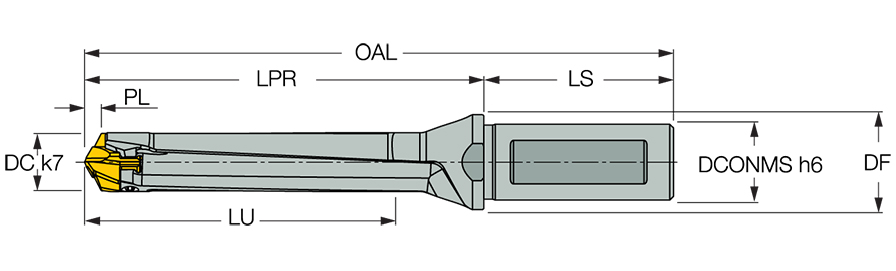

| Cutting Diameter (DC) | 18 mm | Shank Length (LS) | 56 mm |
| Usable Length (LU) | 93.16 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | ILP 180-2M |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 3.16 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Body Material | Steel |
| Insert Seat Size Code (SSC) | 18.0 | Flange Diameter (DF) | 32 mm |
| Cutting Diameter Minimum (DCN) | 18 mm | Body Diameter Reduced (BDRED) | 32 mm |
| Cutting Diameter Maximum (DCX) | 18.99 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Protruding Length (LPR) | 118.5 mm | Unit | M |
| Overall Length (OAL) | 174.5 mm |
Product Features
| Family Description | Exchangeable head drills with screw lock system for interrupted drilling applications | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.3700
