| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | ID4 |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Fixing Hole Diameter (D1) | 5.5 mm |
| Insert Style | DNGA | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 1.2 mm | Min D.O.C. | 0.05 mm |
| Insert Size | 150612 | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 15.5 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 6.35 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | PCD | Body Material | Carbide |
| Coating | UNCOATED | Unit | M |
Product Features

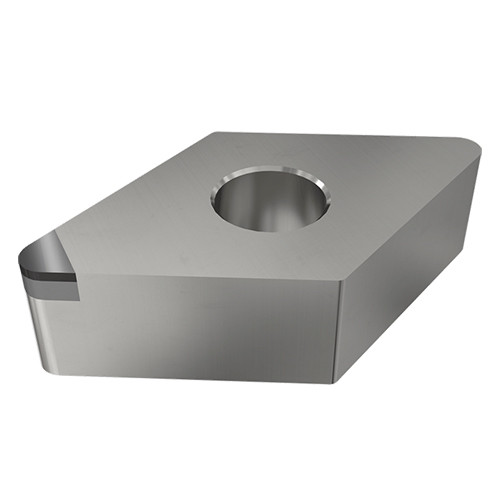

| Family Description | Negative 55° rhombic inserts & negative relief angle with single PCD Tip, used for finishing aluminum and other non-ferrous materials. | FamilyName | DNGA (PCD) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
DNGA (PCD)
BrandName
Iscar
