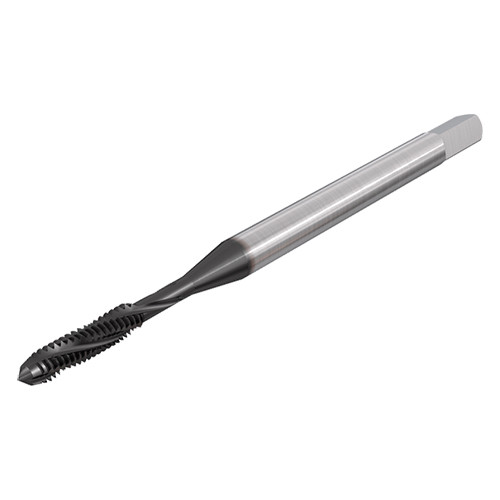

TPS M-4X0.7-W HS
HSS (M2) right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on steel with good machinability.
Price: Log in For Price

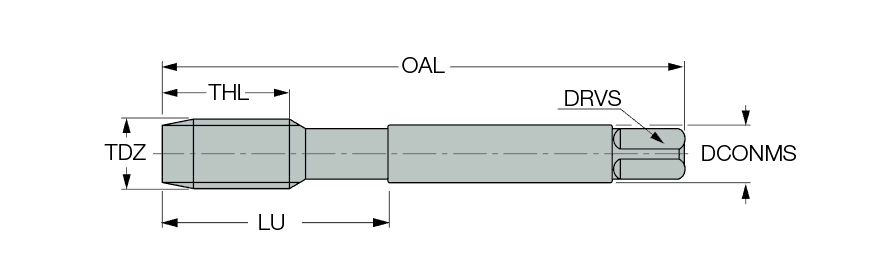

| Thread Diameter Size (TDZ) | M4 | Cutting Edge Material | HSS |
| Thread Pitch (TP) | 0.7 mm | Measurement Type | Metric |
| Thread Standard | THFT | | Grade | HS |
| Overall Length (OAL) | 63 mm | Thread Form Type (THFT) | M60 |
| Thread Cutting Part Length (THL) | 7 mm | Application | | Deep Hole with Short Thread | Taps for Short Blind Hole | |
| Usable Length (LU) | 21 mm | Body Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Drive Size (DRVS) | 3.4 mm |
| Flute Count (NOF) | 3 | Thread Size | M4 × 0.7 |
| Flute Helix Angle (FHA) | 20 Degrees | Unit | M |
Product Features
| Family Description | HSS (M2) right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on steel with good machinability. | COO | Korea |
| Remarks | The material designation HE was recently changed to HEST. HEST and HE are identical products and therefore you may still encounter HE designated items. |
Shipping Info
Weight per item
0.0080
