SCD 0165-112-250 CVD

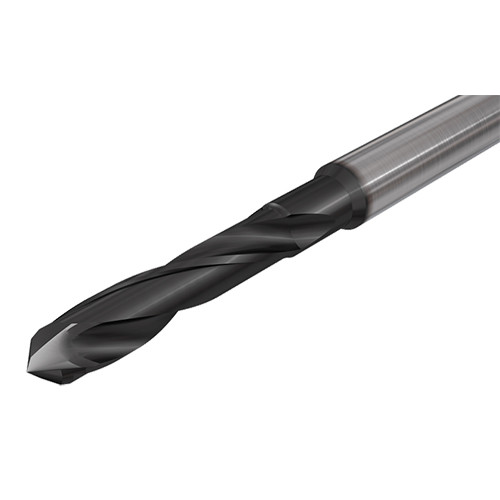

Solid carbide drills with CVD coating for composite materials (CFRP) and Stack Machining
Price: Log in For Price

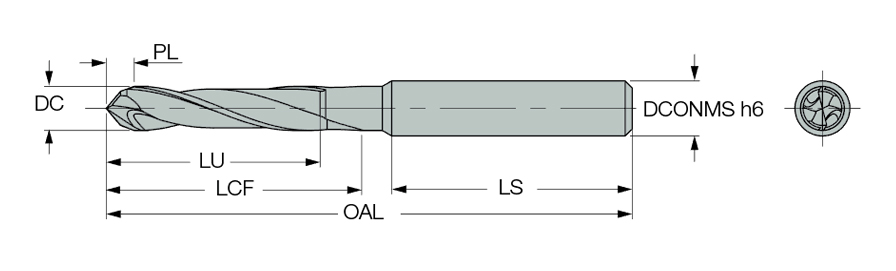

| Drill Bit Size / Cutting Diameter (DC) | 0.165″ | Usable Length (LU) | 1.13″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.165″ | Length Chip Flute (LCF) | 1.37″ |
| Decimal Equivalent | 0.165″ | Overall Length (OAL) | 2-3/4″ |
| Application | | Drilling | | Flute Count (NOF) | 0 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 1.26″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Tool Type | solid carbide Drills | Unit | I |
| Measurement Type | Inch |
Product Features
| Family Description | Solid carbide drills with CVD coating for composite materials (CFRP) and Stack Machining | COO | Israel |
Shipping Info
Weight per item
0.0529
