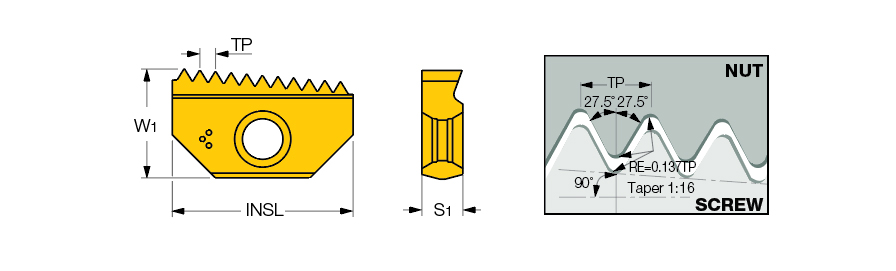

MT LNHT 2104 11BSPT 908
External & internal thread milling inserts for BSPT full profile, for steam, gas and water pipes.
Price: Log in For Price
| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 2.309 mm | Coating | TiAlN |
| Threads per Inch (TPI) | 11 | Tool Type | Threading Regular Inserts |
| Insert Length (INSL) | 21 mm | Measurement Type | Metric |
| Insert Width (W1) | 12.6 mm | Body Material | Carbide |
| Insert Thickness Total (S1) | 4.8 mm | Thread Form Type (THFT) | BSPT55 |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Type (TTP_DF2) | EXT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | External & internal thread milling inserts for BSPT full profile, for steam, gas and water pipes. | COO | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. Internal tolerance: ISO 7-1, EN 10226 (1&2) Standard BSPT External tolerance: ISO 7-1, EN 10226 (1&2) Standard BSPT |
Shipping Info
Weight per item
0.0165
