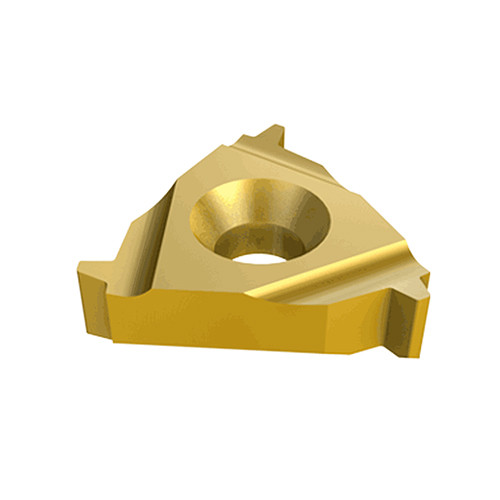

16ER 6 STACME IC250

External STUB ACME lay down threading inserts, for control valves and shallow ACME profile, when normal ACME is too deep due to wall thickness.

Item # ISC5999464

Brand: Iscar

Mfr#: 5999464

Thread Standard	THFT \|	Applicable Material	\| Steel \| Stainless Steel \|

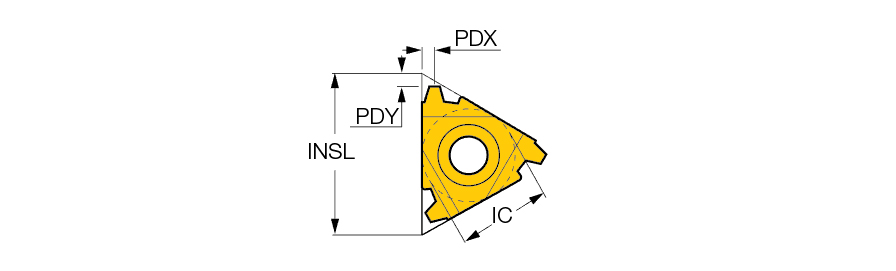

Inscribed Circle Diameter (IC)	9.52 mm	Cutting Direction (HAND)	Right Hand
Insert Length (INSL)	16.49 mm	Tool Type	Threading Regular Inserts
Threads per Inch (TPI)	6 Threads/"	Measurement Type	Metric
Grade	IC250	Body Material	Carbide
Coating	TiCN+TiN	Thread Form Type (THFT)	STAC29
Cutting Edge Material	Carbide	Unit	M
Application	\| External Threading \|	Profile Distance EY (PDY)	1.8 mm

Product Features

Family Description	External STUB ACME lay down threading inserts, for control valves and shallow ACME profile, when normal ACME is too deep due to wall thickness.	FamilyName	ER/L-STACME

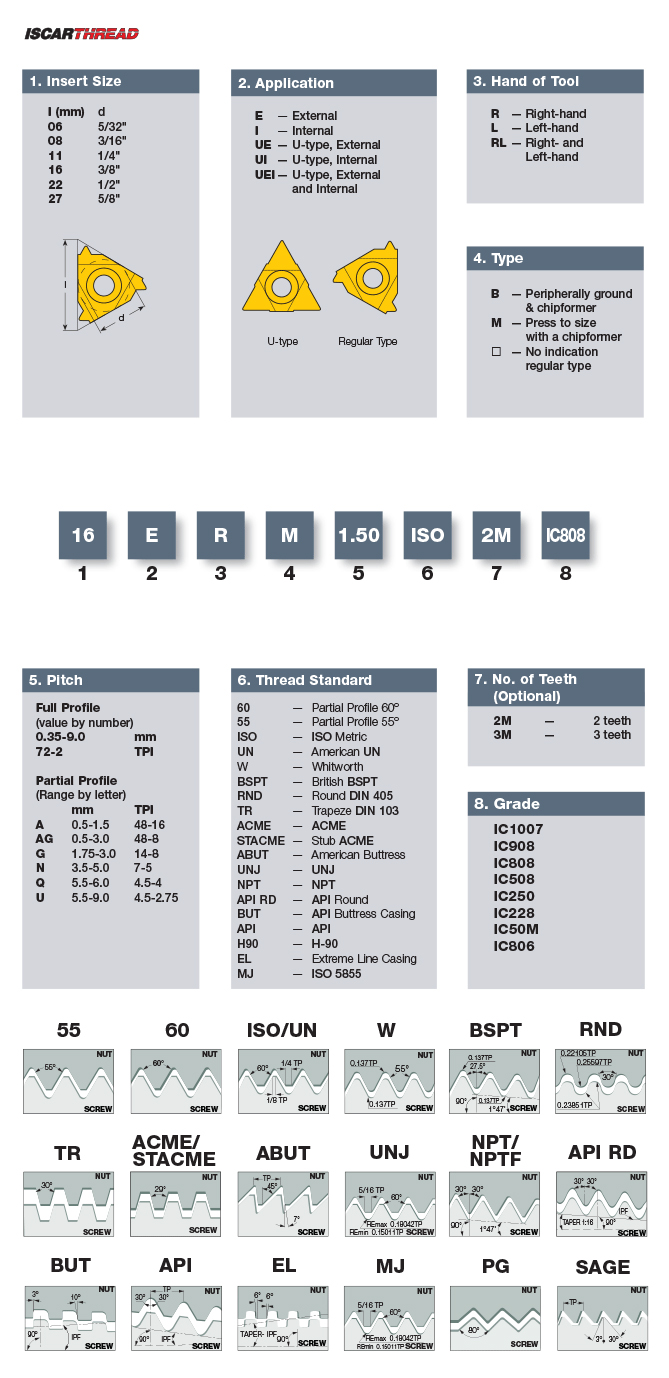

Remarks	‎For Insert Identification System, click on More Info STUB ACME ASME/ANSI B1.8-1988 Class 2G	BrandName	Iscar
COO	Israel

Weight per item

0.0048

Name

Laydown Threading Indexable Inserts

FamilyName

ER/L-STACME

BrandName

Iscar
