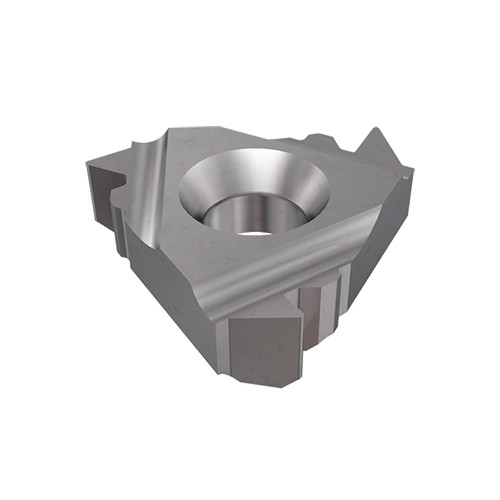

22IR 8 ABUT IC908
Internal American Buttress (ANSI B1.9-1973 Class 2) laydown threading inserts, used for high force transmission in one direction.
Price: Log in For Price
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 22 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 8 | Measurement Type | Metric |
| Corner Radius (RE) | 0.18 mm | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | ABUT |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 2.2 mm |
| Application | | Internal Threading lay down | |
Product Features
| Family Description | Internal American Buttress (ANSI B1.9-1973 Class 2) laydown threading inserts, used for high force transmission in one direction. | FamilyName | IR/L-ABUT |
| Remarks | For Insert Identification System, click on More Info ANSI B1.9-1973 Class 2 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0118
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-ABUT
BrandName
Iscar
