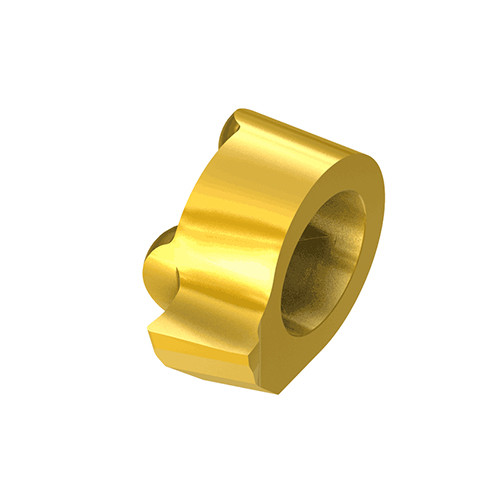

GIQL 8-B18-0.15 IC528
CHAMGROOVE internal back boring and profiling inserts
Price: Log in For Price

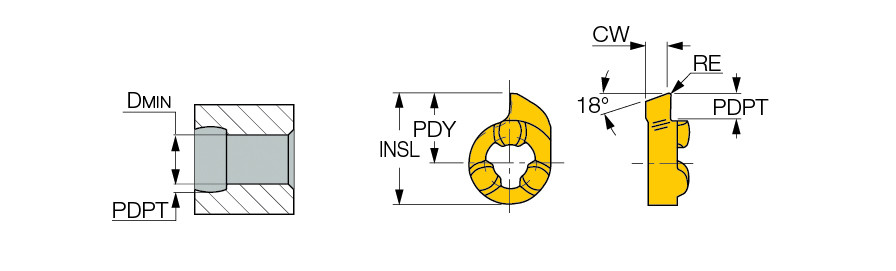

| Cutting Width (CW) | 2.5 mm | Application | | Int. Back Boring and Profiling | |
| Corner Radius (RE) | 0.15 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 1.3 mm | Chip Breaker Type | M |
| Clearance Angle Major (AN) | 18 Degrees | Insert Style | GIQL |
| Minimum Bore Diameter (DMIN) | 7.8 mm | Measurement Type | Metric |
| Coating | TiCN+TiN | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC528 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | CHAMGROOVE internal back boring and profiling inserts | FamilyName | GIQR/L-B18 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0022
Name
Groove/Turn Indexable Inserts
FamilyName
GIQR/L-B18
BrandName
Iscar
