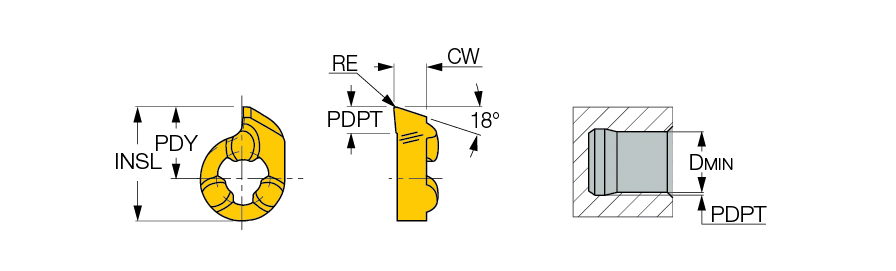

| Cutting Width (CW) | 3 mm | Application | | Int. Boring and Profiling | Int. Groove & Turn | |
| Corner Radius (RE) | 0.15 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 1.6 mm | Chip Breaker Type | M |
| Clearance Angle Major (AN) | 18 Degrees | Insert Style | GIQR |
| Minimum Bore Diameter (DMIN) | 7.8 mm | Measurement Type | Metric |
| Coating | TiCN+TiN | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC528 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | CHAMGROOVE internal boring and profiling inserts | FamilyName | GIQR/L-A18 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0022
Name
Groove/Turn Indexable Inserts
FamilyName
GIQR/L-A18
BrandName
Iscar
