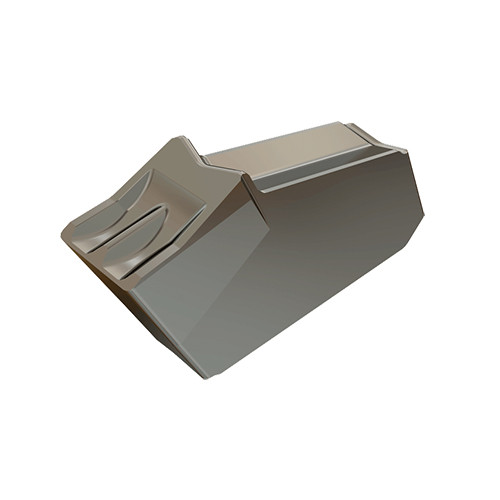

GFN 4.8W IC354
Parting & grooving single-sided insert. W-type chipformer, with a central ridge that forms double cavities on the rake face. Most efficient on alloy steel.
Price: Log in For Price
| Cutting Width (CW) | 4.8 mm | Max. Grooving Feed (fg(max)) | 0.3 mm/rev |
| Corner Radius (RE) | 0.28 mm | Min. Grooving Feed (fg(min)) | 0.1 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.05 mm | Chip Breaker Type | W |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC354 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.04 mm |
| Application | | Ext. Grooving | Int. Grooving | Parting | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | Parting & grooving single-sided insert. W-type chipformer, with a central ridge that forms double cavities on the rake face. Most efficient on alloy steel. | FamilyName | GFN-W |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0045
Name
Parting Off Indexable Inserts
FamilyName
GFN-W
BrandName
Iscar
