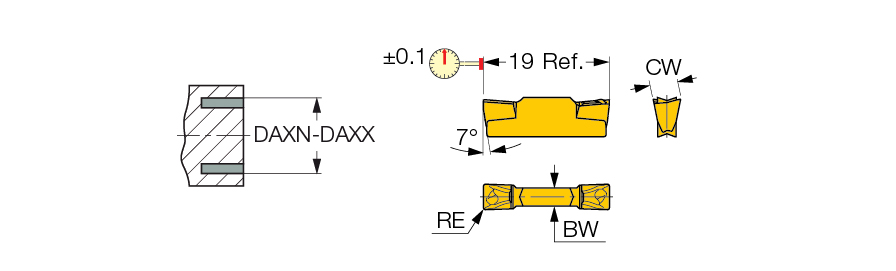

| Cutting Width (CW) | 3 mm | Axial Groove Outside Diameter Maximum (DAXX) | 51.5 mm |
| Insert Length (INSL) | 19 mm | Axial Groove Outside Diameter Minimum (DAXN) | 25.6 mm |
| Corner Radius (RE) | 0.3 mm | Max. Face Grooving Feed (ffg(max)) | 0.2 mm/rev |
| Cutting Edge Material | Carbide | Min. Face Grooving Feed (ffg(min)) | 0.08 mm/rev |
| Applicable Material | | Steel | Stainless Steel | | Min. Face Turning Feed (fft(min)) | 0.1 mm/rev |
| Grade | IC354 | Measurement Type | Metric |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Face Recessing | | Coating | TiCN |
| Tool Type | Face Turn-Groove Inserts | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 1.5 mm | Unit | M |
| Min D.O.C. | 0.3 mm |
Product Features
| Family Description | Utility double-ended face machining inserts. | FamilyName | HFPR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0041
Name

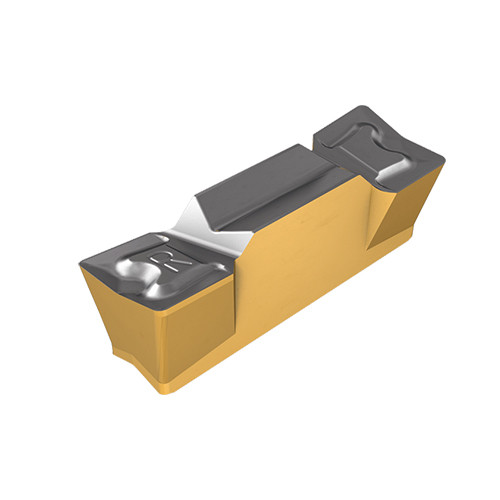

Face Groove/Turn Indexable Inserts
FamilyName
HFPR/L
BrandName
Iscar
