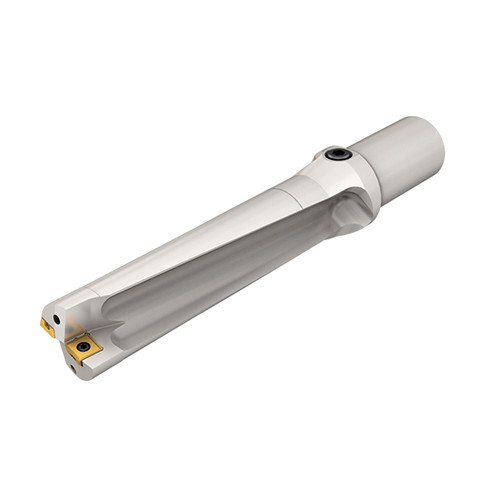

DR180-072-25-06-4D-T
Indexable insert drills for non-rotating applications with coolant holes and one flat shank, drilling depth 4xD
Price: Log in For Price

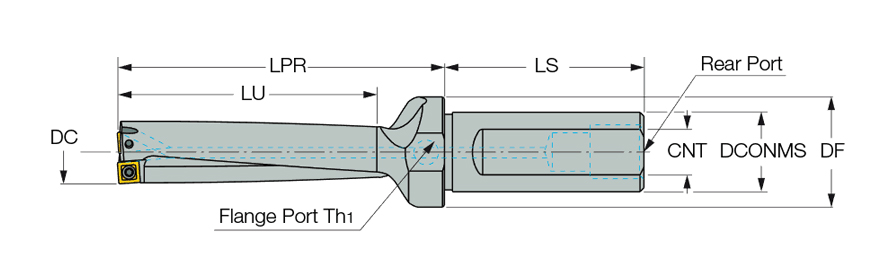

| Cutting Diameter (DC) | 18 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 72 mm | Cutting Diameter Maximum (DCX) | 20.9 mm |
| Application | | Drilling | | Flange Diameter (DF) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 060304-DT |
| Protruding Length (LPR) | 94 mm | Body Material | Steel |
| Shank Length (LS) | 56 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 93.46 mm | Unit | M |
| Overall Length (OAL) | 150 mm |
Product Features
| Family Description | Indexable insert drills for non-rotating applications with coolant holes and one flat shank, drilling depth 4xD | COO | Israel |
| Remarks | Hole tolerance: D+0.35/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions. |
Shipping Info
Weight per item
0.3800
