DR042-168-40-12-4D-N

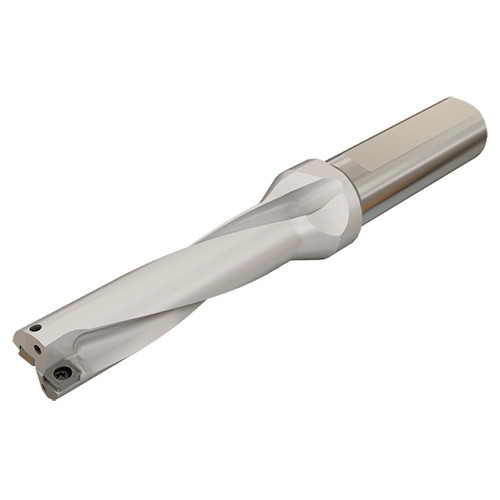

DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.
Price: Log in For Price

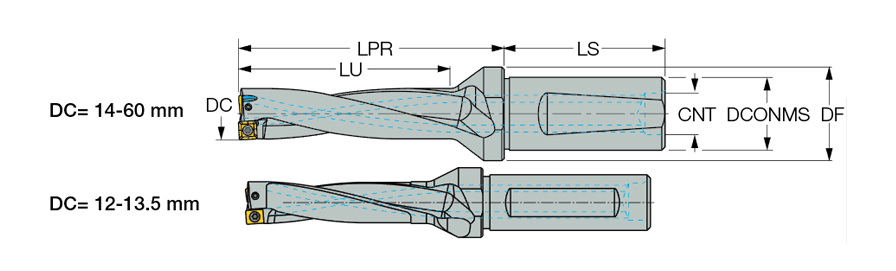

| Cutting Diameter (DC) | 42 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 168 mm | Cutting Diameter Maximum (DCX) | 44 mm |
| Application | | Drilling | | Flange Diameter (DF) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMT 120408-DT |
| Protruding Length (LPR) | 204 mm | Body Material | Steel |
| Shank Length (LS) | 68 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 202.74 mm | Unit | M |
| Overall Length (OAL) | 272 mm |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD. | COO | Israel |
| Remarks | Hole tolerance D+0.35/-0.05 in average conditions applied. It can be higher or lower according to machine and tooling conditions |
Shipping Info
Weight per item
1.9170
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
