DR220-066-25-07-3D-N

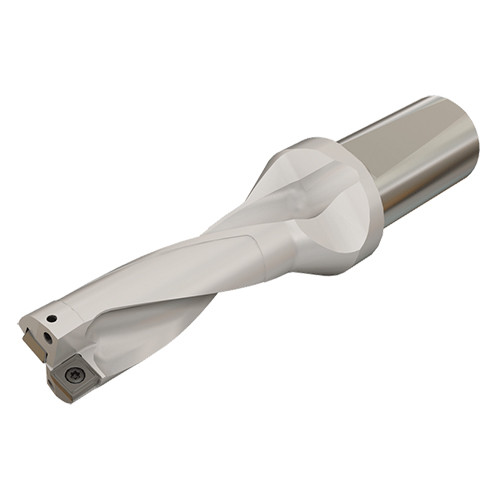

DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD.
Price: Log in For Price

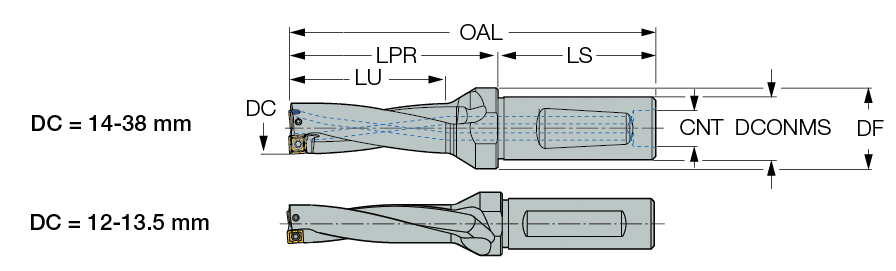

| Cutting Diameter (DC) | 22 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 66 mm | Cutting Diameter Maximum (DCX) | 25 mm |
| Application | | Drilling | | Flange Diameter (DF) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 07 |
| Protruding Length (LPR) | 86 mm | Body Material | Steel |
| Shank Length (LS) | 56 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 85.34 mm | Unit | M |
| Overall Length (OAL) | 142 mm |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD. | COO | Israel |
| Remarks | Hole tolerance D+0.25/-0.05 in average conditions applied. It can be higher or lower according to machine and tooling conditions |
Shipping Info
Weight per item
0.3950
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
