DR0562-2250-075-05-4D-N

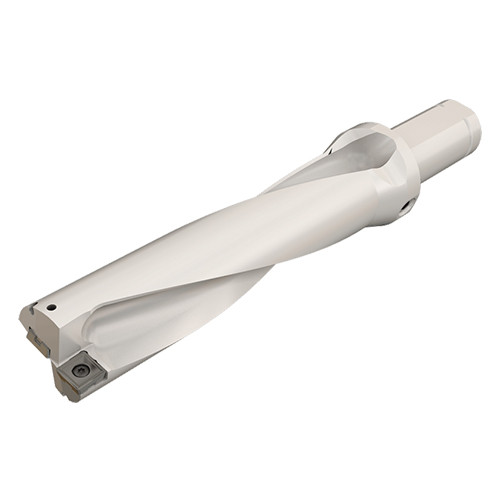

DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.
Price: Log in For Price

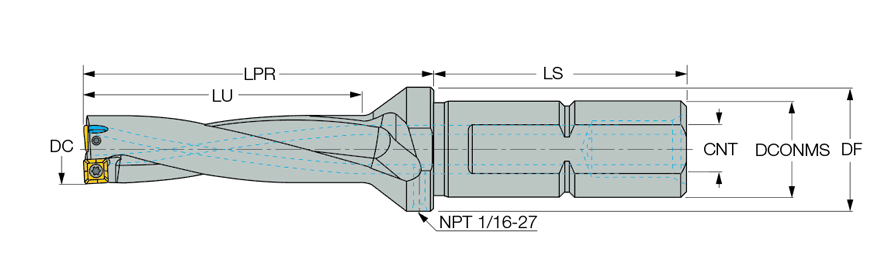

| Cutting Diameter (DC) | 0.562″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2-1/4″ | Cutting Diameter Maximum (DCX) | 0.665″ |
| Application | | Drilling | | Flange Diameter (DF) | 1.102″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 05 |
| Protruding Length (LPR) | 3.08″ | Body Material | Steel |
| Shank Length (LS) | 3″ | Decimal Equivalent | 0.562″ |
| Functional Length (LF) | 3.063″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 6.08″ | Unit | I |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD. | COO | Israel |
| Remarks | Hole tolerance D+.014/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
Weight per item
0.5622
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
