DCN 0984-492-125A-5D
SUMOCHAM 5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Price: Log in For Price

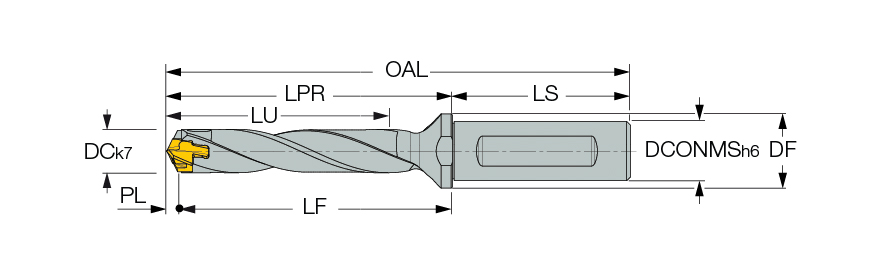

| Cutting Diameter (DC) | 0.984″ | Shank Length (LS) | 2.36″ |
| Usable Length (LU) | 5.071″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 250 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.15″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Insert Seat Size Code (SSC) | 25.0 | Flange Diameter (DF) | 1.65″ |
| Cutting Diameter Minimum (DCN) | 0.984″ | Decimal Equivalent | 0.984″ |
| Cutting Diameter Maximum (DCX) | 1.023″ | Body Diameter Reduced (BDRED) | 1.65″ |
| Protruding Length (LPR) | 6.48″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 6.301″ | Unit | I |
| Overall Length (OAL) | 8.84″ |
Product Features
| Family Description | SUMOCHAM 5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
1.8166
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
