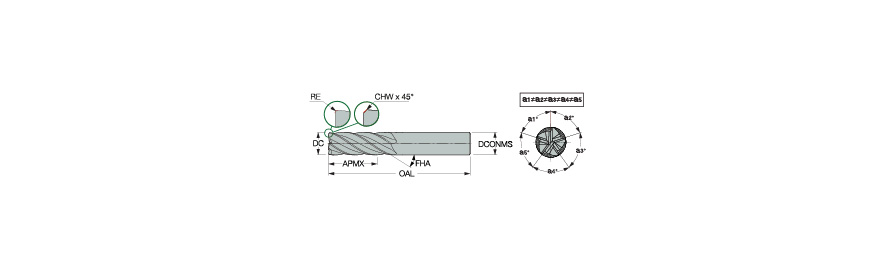

| Cutting Diameter (DC) | 5/8″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 1.56″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 4″ | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.625″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Chamfer | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 1.56″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Unit | I |
| Corner Chamfer Width (CHW) | 0.02″ |
Product Features

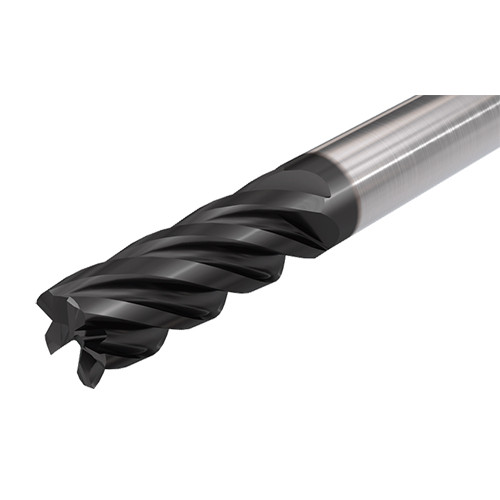

| Family Description | 5 flute, 38° helix with variable pitch for roughing and finishing operations. High material removal rates chatter free. Used for machining alloyed and stainless steel, titanium and exotic materials. Full slot milling - up to 1XD. | FamilyName | ECI-E5-CF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.5490
Name
Square & Corner Radius End Mills
FamilyName
ECI-E5-CF
BrandName
Iscar
