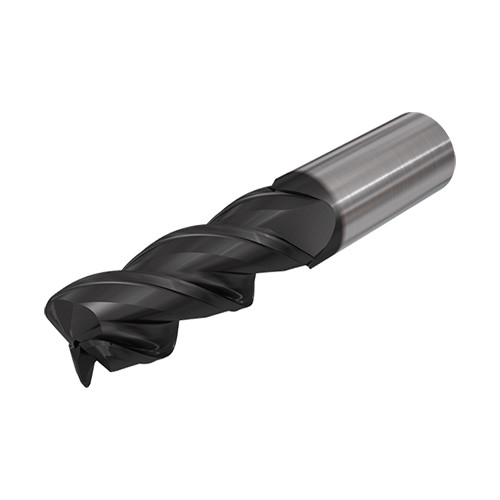

ECAI-B3 .125-.3CR0-1.5EC IC1508
DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials.
Price: Log in For Price

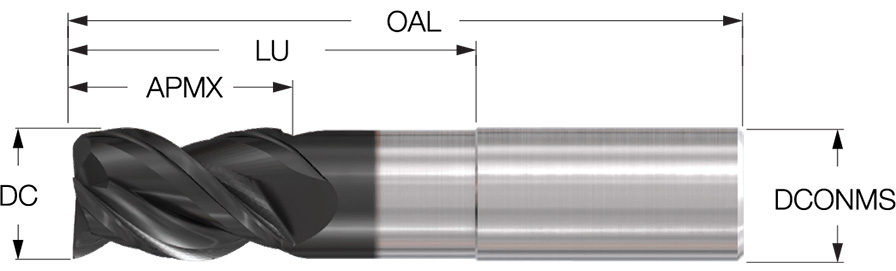

| Cutting Diameter (DC) | 1/8″ | Corner Radius (RE) | 0″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1/4″ | Grade | IC1508 |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.002 ″/tooth |
| Coating | DLC | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.125″ |
| Usable Length (LU) | 1/4″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Unit | I |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials. | FamilyName | ECAI-B3-EC |
| COO | USA | BrandName | Iscar |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
ECAI-B3-EC
BrandName
Iscar
