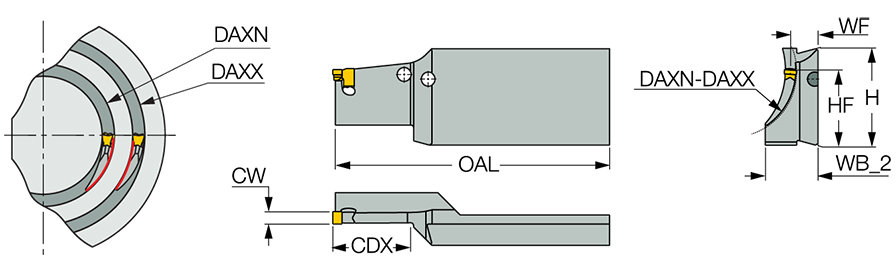

| Shank Height (H) | 32 mm | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 27 mm | Tool Type | Face Grooving Tools |
| Cutting Width (CW) | 4 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 8.85 mm |
| Axial Groove Outside Diameter Maximum (DAXX) | 80 mm | Measurement Type | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 60 mm | Unit | M |
| Overall Length (OAL) | 90 mm |
Product Features

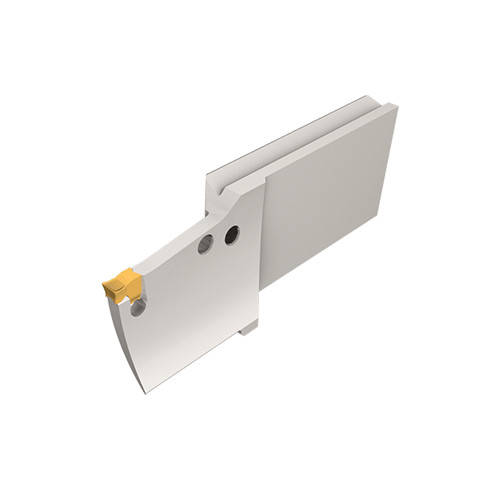

| Family Description | TANGFACE reinforced face grooving blades | FamilyName | TNFFA-IQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1750
Name
Face Groove/Turn Indexable Holders
FamilyName
TNFFA-IQ
BrandName
Iscar
