| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | Uncoated |
| Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | | Cutting Edge Material | Carbide |

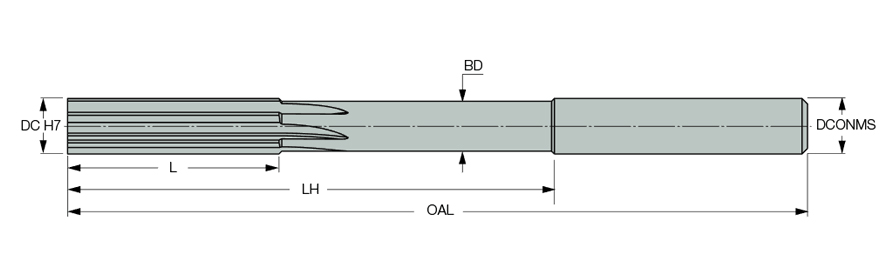

| Cutting Edge Length (L) | 21 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Body Material | Carbide |
| Overall Length (OAL) | 80 mm | Unit | M |
| Grade | IC07 |
Product Features

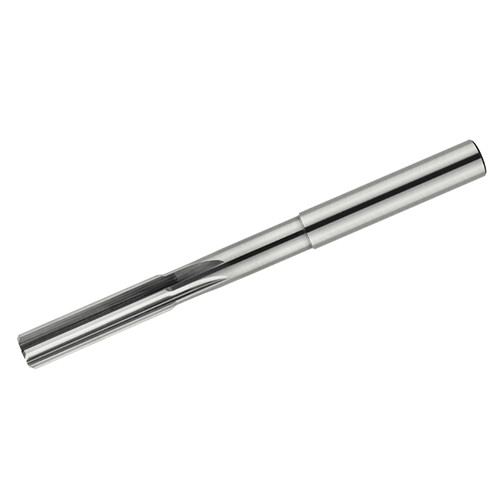

| Family Description | DIN 212C solid carbide reamers with straight flutes and a cylindrical shank for blind holes | COO | Italy |

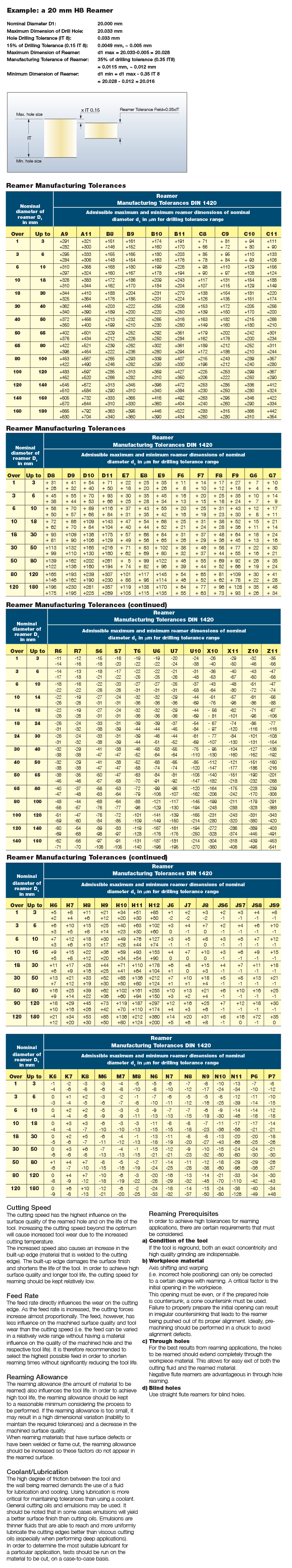

| Remarks | Hole tolerance: H7 manufacturing tolerance according to DIN1420 Available grades: IC07 - uncoated, optional: IC907 - TiAlN PVD coated Special diameters are available on request |
Shipping Info
Weight per item
0.1984
