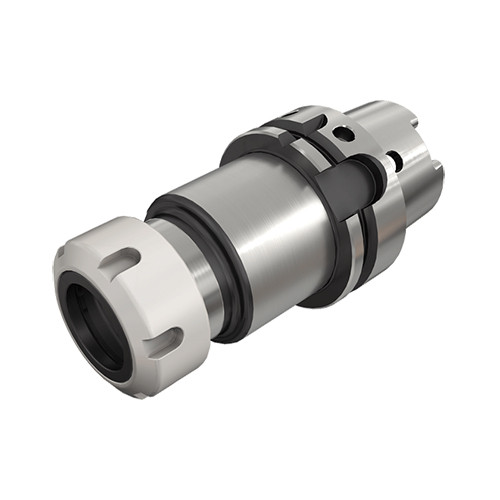

HSK A100 ER40X100
DIN6499 ER collet chucks with HSK DIN69893 form A tapered shanks.
Price: Log in For Price

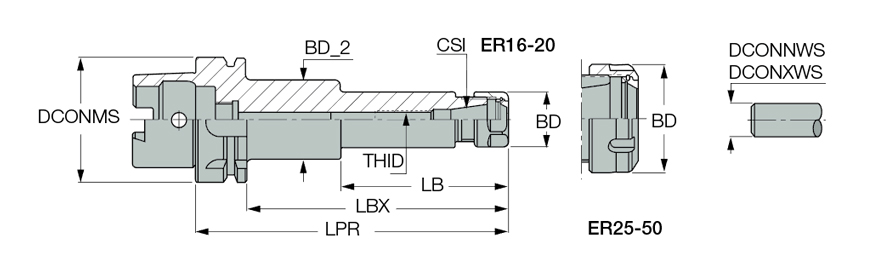

| Shank Size (SS) | 100 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 3 mm |
| Connection Size (CSI) | ER40 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 26 mm |
| Body Diameter (BD) | 63 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 100 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Unit | M |
| Tool Type | HSK |
Product Features
| Family Description | DIN6499 ER collet chucks with HSK DIN69893 form A tapered shanks. | FamilyName | HSK A-ER |

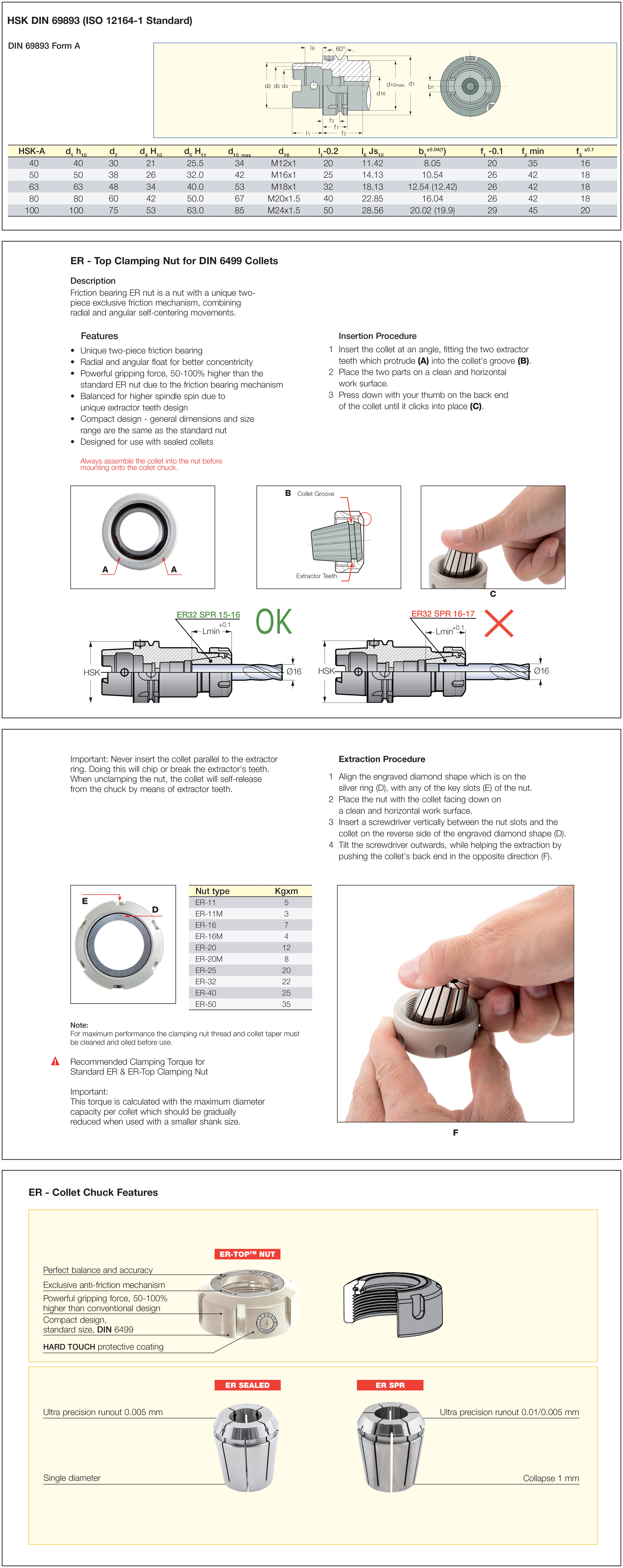

| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
3.1500
Name
Collet Chucks
FamilyName
HSK A-ER
BrandName
Iscar
