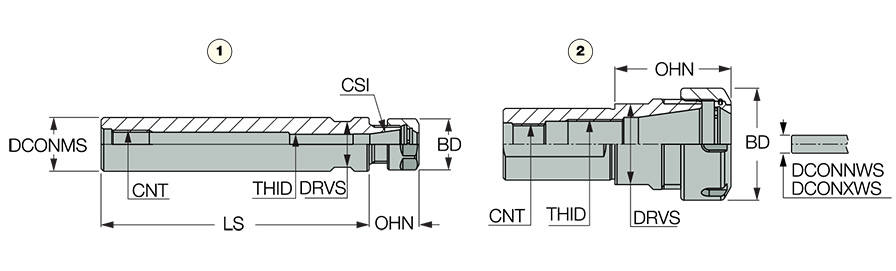

| Shank Size (SS) | 1-1/4 | Measurement Type | Inch |
| Connection Size (CSI) | ER32 | Drive Size (DRVS) | 1.417″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Unit | I |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
Product Features

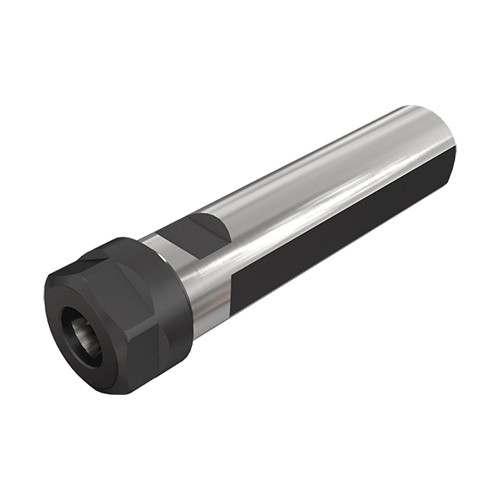

| Family Description | DIN 6499 ER collet chucks with straight shanks. | FamilyName | ST-ER |
| Remarks | F suffix indicates a flat on the shank. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.4493
Name
Collet Chucks
FamilyName
ST-ER
BrandName
Iscar
