ER32 SRF 12X85
SHRINKIN thermal shrink chuck with a CLICKIN quick change adaptation. To be used for carbide tools only.
Price: Log in For Price

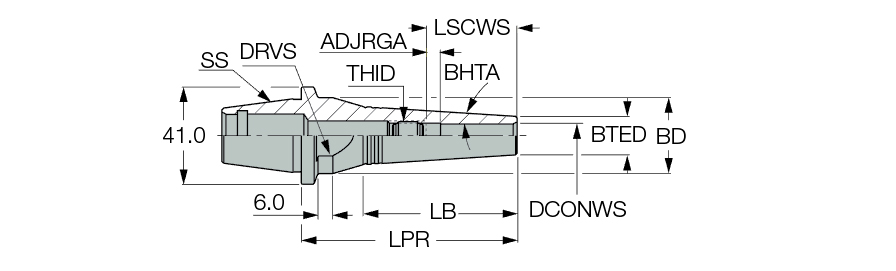

| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Drive Size (DRVS) | 27 mm |
| Shank Size (SS) | 32 SRF | Tool Type | Spring Collets |
| Body Length (LB) | 50 mm | Body Material | Steel |
| Protruding Length (LPR) | 85 mm | Unit | M |
| Overall Length (OAL) | 116 mm |
Product Features
| Family Description | SHRINKIN thermal shrink chuck with a CLICKIN quick change adaptation. To be used for carbide tools only. | FamilyName | ER-SRF |
| Remarks | Tightening torque: 24 Kgxm For carbide tools only | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4200
Name
Shrink Fit Holders
FamilyName
ER-SRF
BrandName
Iscar
