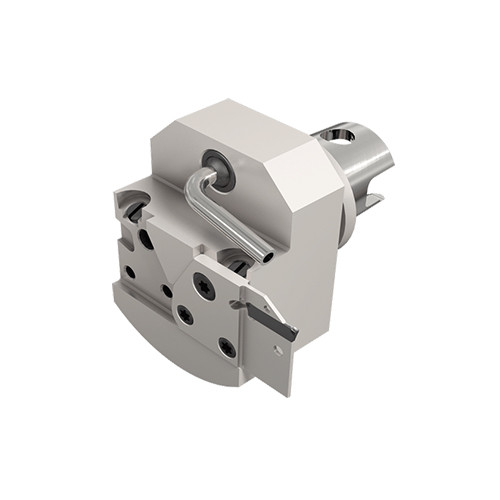

IM63 MAHPD
Perpendicular holders with an ISO 26622-1(*) tapered shank for MODULAR-GRIP, parting, grooving, turning and facing adapters.
Price: Log in For Price

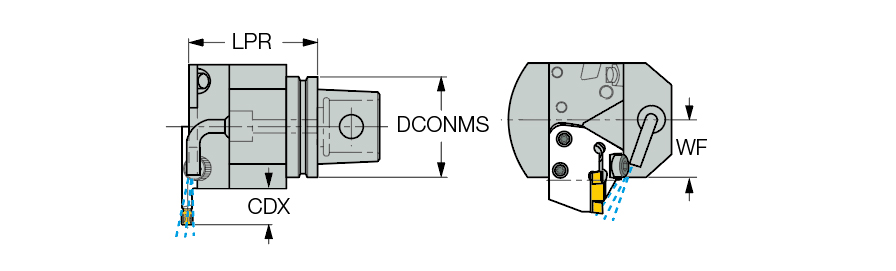

| Protruding Length (LPR) | 45 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Functional Width (WF) | 0 mm | Overall Length (OAL) | 85 mm |
| Shank Size (SS) | 63 | Unit | M |

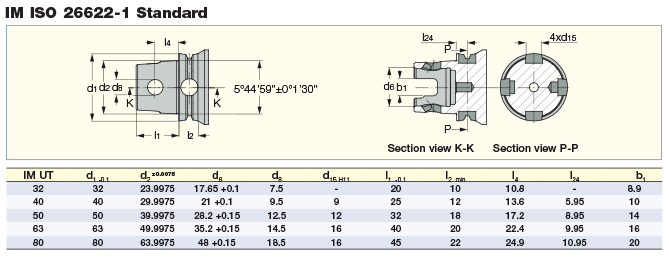

| Tool Type | ISO 26622-1 (KM, IM) |
Product Features
| Family Description | Perpendicular holders with an ISO 26622-1(*) tapered shank for MODULAR-GRIP, parting, grooving, turning and facing adapters. | FamilyName | IM-MAHPD |
| Remarks | (*) Tools with orientation holes in the flange groove can be supplied on request | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.6470
Name
Adapters
FamilyName
IM-MAHPD
BrandName
Iscar
Related Documentation
SR14-519 is screw for DGAD, HGAD and PCADR/L adapters. Supplied in the attached plastic bag. SR M6X20-XT is screw for CGPAD, HGPAD, TGPAD and FGPAD adapters. Supplied with the tool in the attached plastic bag. Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation.
