| Shank Size (SS) | 50 | Measurement Type | Metric |
| Body Diameter (BD) | 25 mm | Tool Type | PS BT-MAS |
| Connection Retention Knob Thread Size (CRKS) | M24 | Body Half Taper Angle (BHTA) | 60 Degrees |
| Body Length (LB) | 35 mm | Body Material | Steel |
| Overall Length (OAL) | 85 mm | Unit | M |
| Application | | Collets & Accessories | |
Product Features

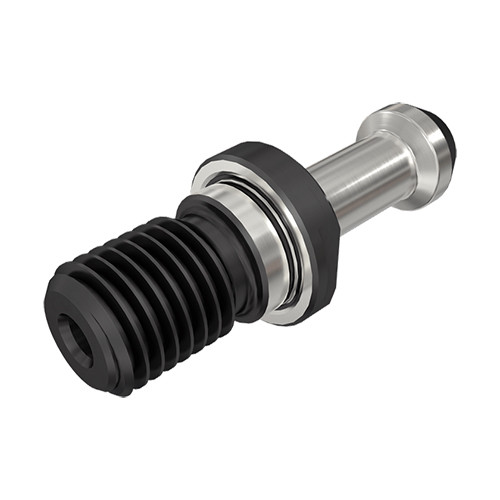

| Family Description | BT pull stud with MAS retention knob. | FamilyName | PS BT-MAS (Pull Stud) |

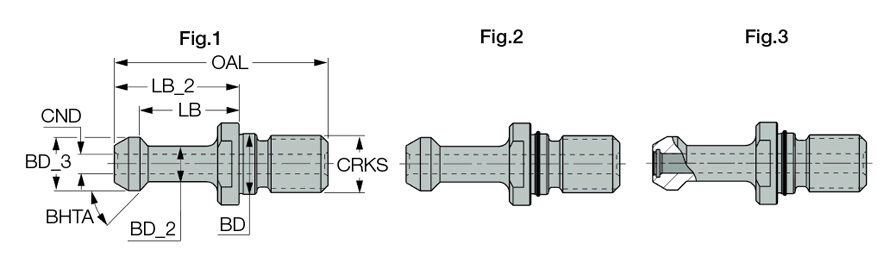

| Remarks | Fig 1: With or without coolant holes (coolant holes only in items with a B suffix) Fig 2: With coolant holes and external O-ring Fig 3: With coolant holes, external and internal O-rings | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
0.2740
Name
Pull Studs (Retention Knobs)
FamilyName
PS BT-MAS (Pull Stud)
BrandName
Iscar
