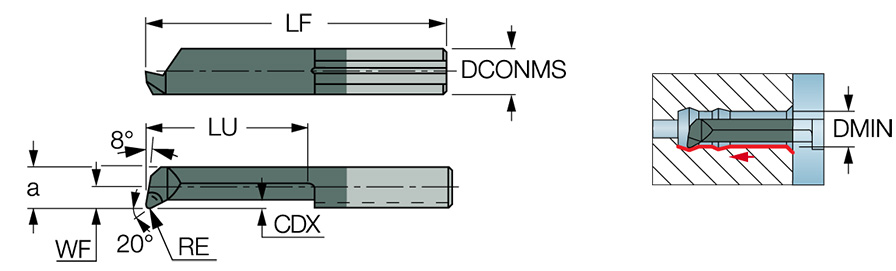

| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.04 mm |
| Minimum Bore Diameter (DMIN) | 0.6 mm | Cutting Depth Maximum (CDX) | 0.08 mm |
| Functional Length (LF) | 20 mm | Usable Length (LU) | 3 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiCN+TiN | Cutting Edge Material | Carbide |
| Grade | IC228 | Tool Type | Solid Carbide Turn Tool |
| Application | | Int. Boring and Profiling | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Front End Width (a) | 0.5 mm |
Product Features
| Family Description | Inserts for internal turning and chamfering | FamilyName | PICCO R/L 050, 053, 055 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0070
Name
Solid Boring Bars
FamilyName
PICCO R/L 050, 053, 055
BrandName
Iscar
