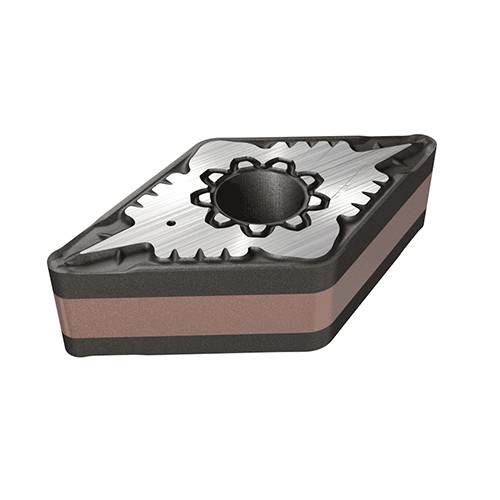

DNMG 150404-F3M IC804
Double-sided 55° rhombic inserts, first choice for finish turning of stainless steel and high temperature alloy. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life.
Price: Log in For Price
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 0.1 mm |
| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 1.5 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 150404 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |

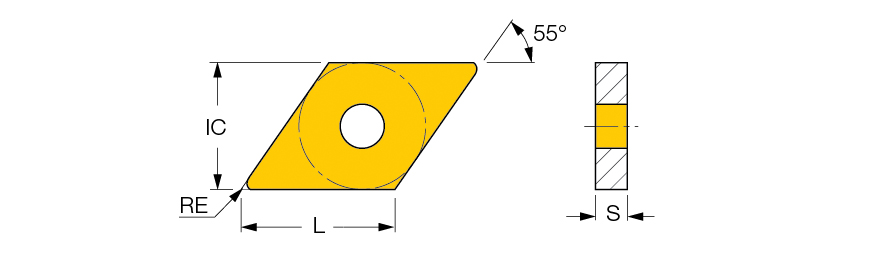

| Cutting Edge Length (L) | 15.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | F3M |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN "SUMO TEC" | Unit | M |
| Grade | IC804 |
Product Features
| Family Description | Double-sided 55° rhombic inserts, first choice for finish turning of stainless steel and high temperature alloy. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. | FamilyName | DNMG-F3M |
| Remarks | For dimensions and tolerances, see more info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0150
Name
Turning Indexable Inserts
FamilyName
DNMG-F3M
BrandName
Iscar
