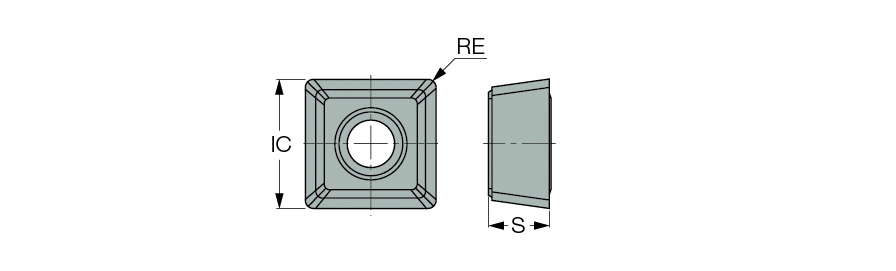

| Insert Thickness (S) | 3.81 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Inscribed Circle Diameter (IC) | 9 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.6 mm | Tool Type | Indexable drilling inserts |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | IC08 | Body Material | Carbide |
| Application | | Drill Mill | Drilling | | Unit | M |
Product Features
| Family Description | DR Drill Inserts for aluminum | COO | Israel |
| Remarks | Sharp cutting edge with polished rake for aluminum |
Shipping Info
Weight per item
0.0036
