| Applicable Material | | Cast Iron | | Grade | IC5100 |
| Application | | Chamfering & Bottom Deburring | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |

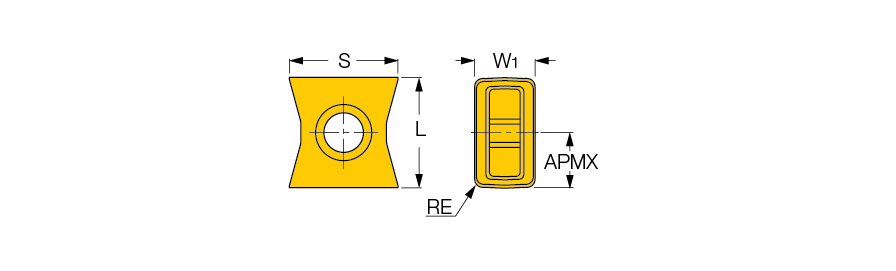

| Insert Length (INSL) | 11.16 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 5 mm | Minimum Feed per Tooth (fz(min)) | 0.17 mm/tooth |
| Insert Width (W1) | 6 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 11 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiCN+Al2O3 | Unit | M |
Product Features

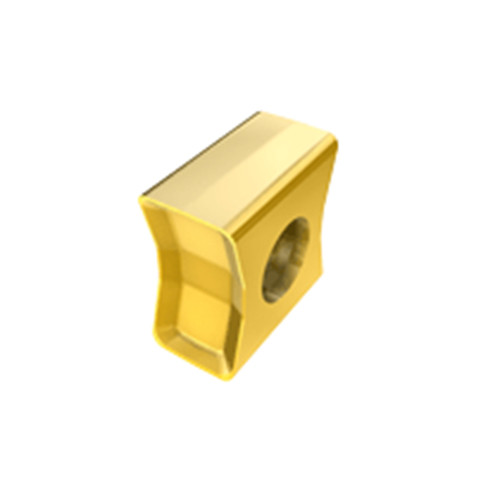

| Family Description | TANGMILL Tangentially clamped inserts, peripherally ground with a very positive chipformer and a reinforced cutting edge. Feature low cutting forces and excellent surface finish. | FamilyName | LNKX/LNMT 1106 |
| Remarks | Molded chipformer to produce positive cutting Reduced cutting forces enable higher feed capability LNKX... is peripherally ground for accuracy and improved surface finish LNMT... is an economical utility insert LNKX1106PNTN MM insert has a reinforced, chamfered land 4 R.H. and 4 L.H. cutting edges when used on F90LN... cutters | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0082
Name
Milling Indexable Inserts
FamilyName
LNKX/LNMT 1106
BrandName
Iscar
