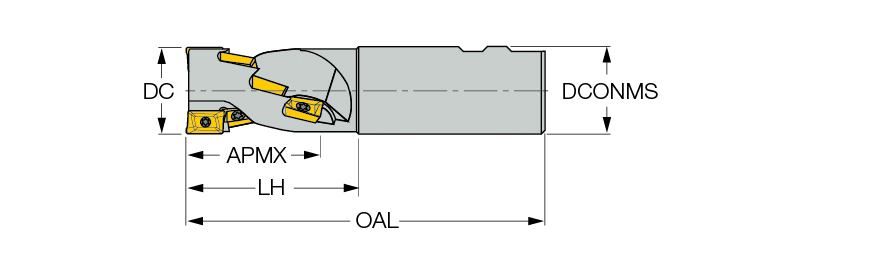

| Application | | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 28 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 20 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Tool Type | 90° Extended flute endmills |
| Flute Count (NOF) | 1 | Connection Code Machine Side (CCMS) | Cylindrical |
| Overall Length (OAL) | 110 mm | Unit | M |
| Master Insert Identification (MIID) | APKT 1003PDR |
Product Features

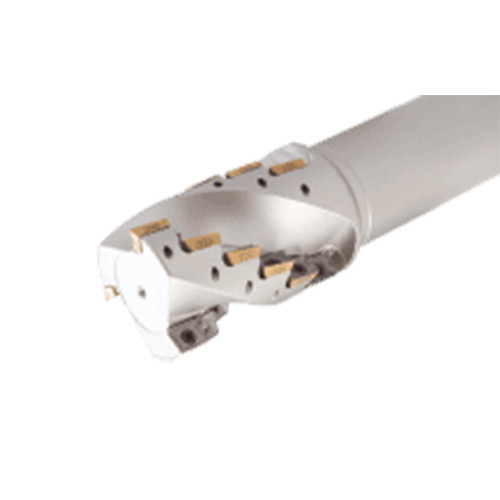

| Family Description | Extended flute endmills carrying HELIMILL APKT/R-10... inserts. | FamilyName | APK-FE |
| Remarks | Inserts with large corner radii can only be mounted in the face position of the cutter | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2290
Name
Shell Mills
FamilyName
APK-FE
BrandName
Iscar
