HM390 FTD D6.00-8-2.0-15

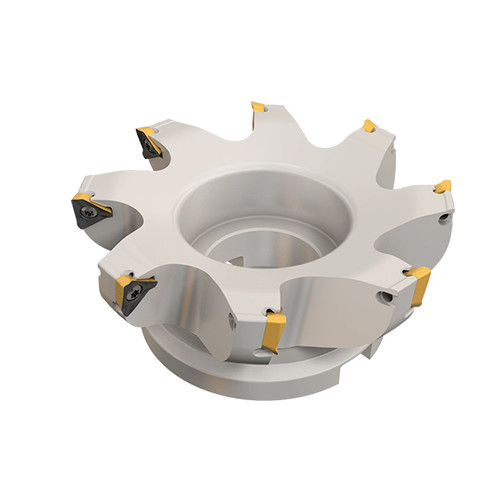

90° face mills carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges.
Price: Log in For Price

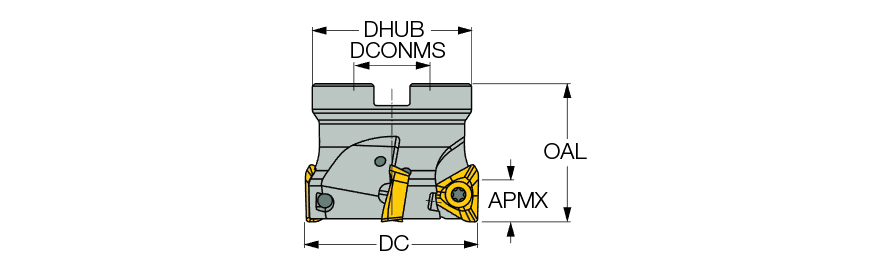

| Cutting Diameter (DC/DCX) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 6″ | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.512″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 4.33″ | Tool Type | 90° Facemills |

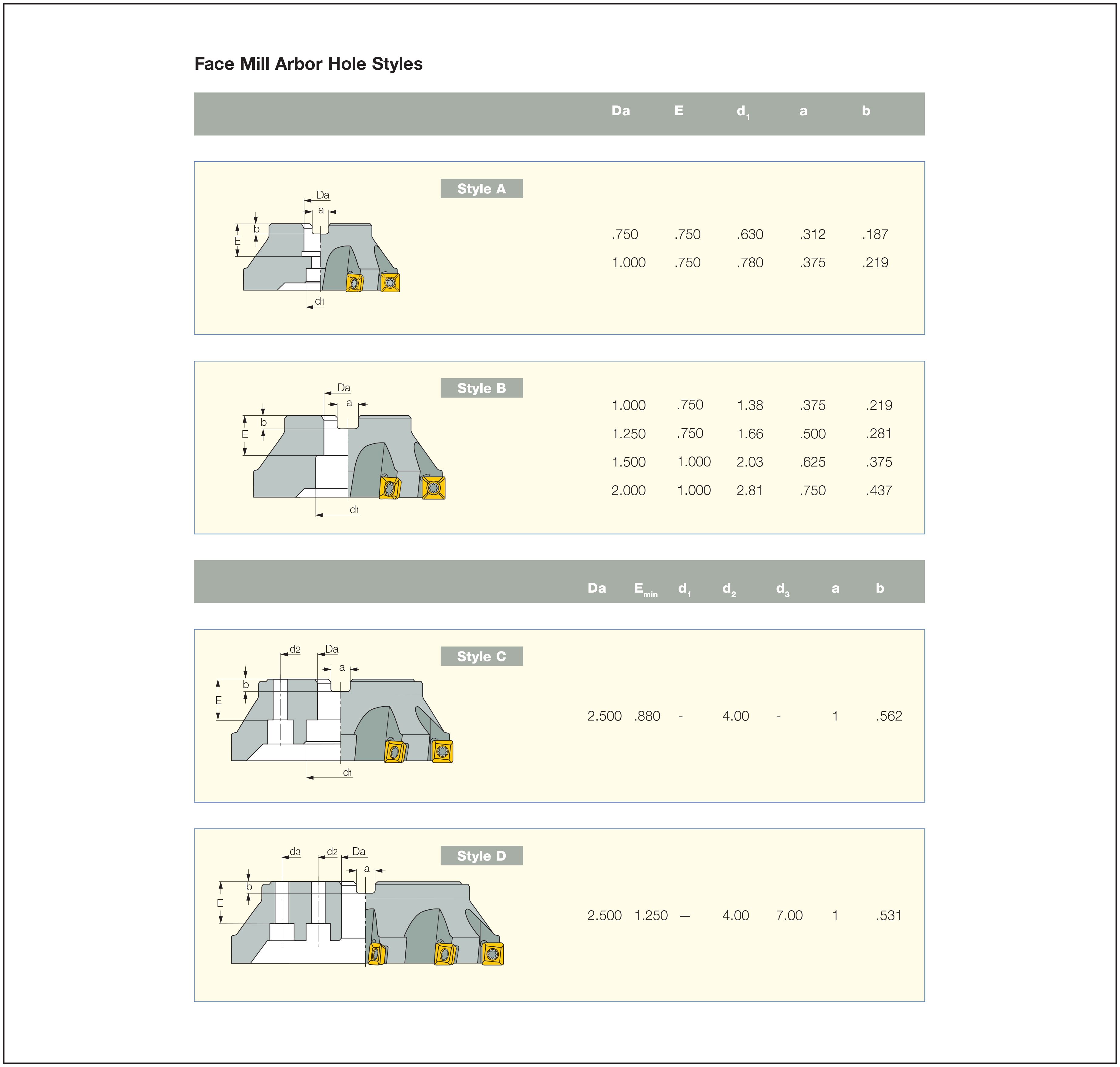

| Arbor Style | B | Unit | I |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR |
Product Features
| Family Description | 90° face mills carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges. | FamilyName | HM390 FTD-15 |
| Remarks | When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by .04 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
7.7889
Name
Indexable Face Mills
FamilyName
HM390 FTD-15
BrandName
Iscar
