ETS D32/1.26-4-LN08-MMT10
Grooving and slitting cutters with MULTI-MASTER threaded adaptor, that mount tangentially clamped inserts with 4 cutting edges.
Price: Log in For Price

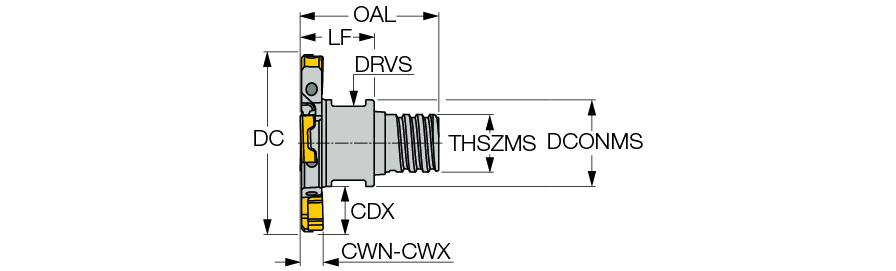

| Cutting Diameter (DC) | 32 mm | Tool Type | Double-sided slotting cutters |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Cutting Item Count (CICT) | 4 |
| Connection Diameter Machine Side (DCONMS) | 15.2 mm | Master Insert Identification (MIID) | LNET 082604-TN-N |
| Overall Length (OAL) | 24.3 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Application | | Side Slotting | Slitting | T Slotting | | Unit | M |
| Measurement Type | Metric |
Product Features
| Family Description | Grooving and slitting cutters with MULTI-MASTER threaded adaptor, that mount tangentially clamped inserts with 4 cutting edges. | FamilyName | ETS-LN08-MM |
| Remarks | For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0780
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
ETS-LN08-MM
BrandName
Iscar
