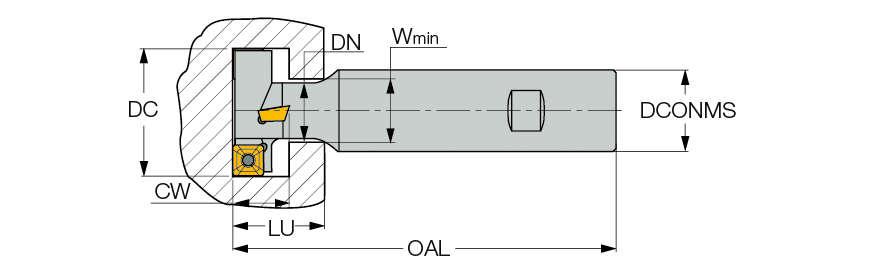

| Cutting Diameter (DC) | 0.78″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.19″ | Tool Type | Double-sided slotting cutters |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 1 | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Functional Length (LF) | 2.297″ |
| Overall Length (OAL) | 3-1/4″ | Master Insert Identification (MIID) | XOMT 060204-HQ |
| Usable Length (LU) | 0.9″ | Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Weldon | Unit | I |
| Application | | Bottom Shouldering | Side Slotting | T Slotting | | Neck Diameter (DN) | 0.39″ |
Product Features
| Family Description | T-slot endmills. | FamilyName | ETS |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.3594
Name

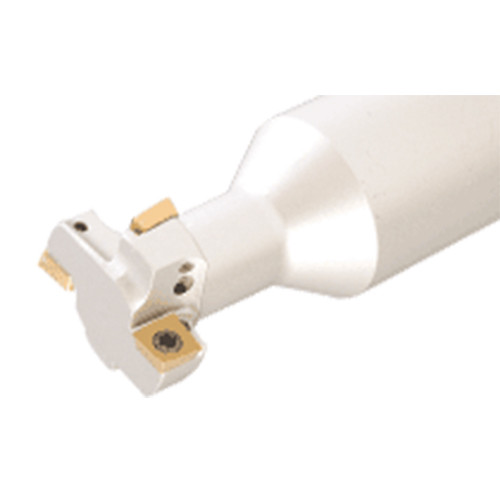

Disc w/Shank Indexable Slotting Cutters
FamilyName
ETS
BrandName
Iscar
