FDN D080-06-22-LN08

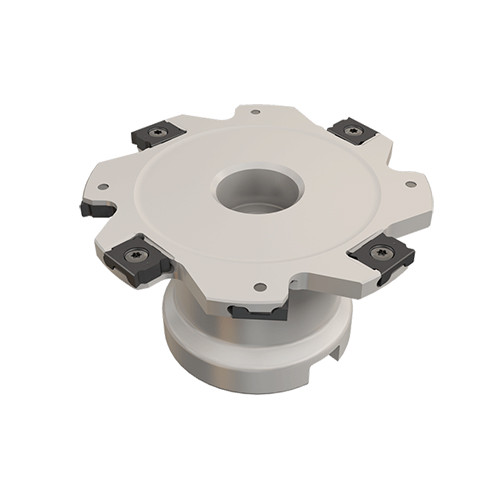

Full slot cutters carrying LNET 08 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds.
Price: Log in For Price

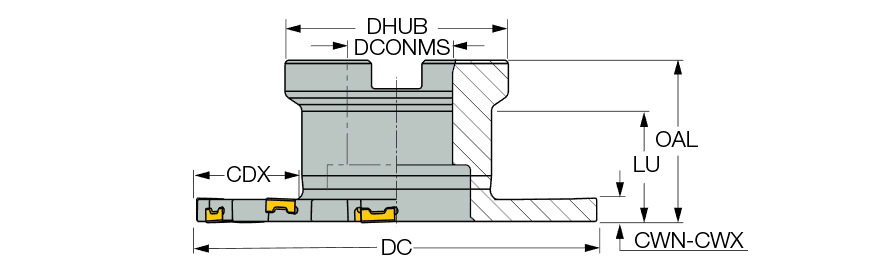

| Cutting Diameter (DC) | 80 mm | Overall Length (OAL) | 40 mm |
| Cutting Item Count (CICT) | 10 | Master Insert Identification (MIID) | LNET 083504-TN-N |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Application | | Side Slotting | Slitting | Slotting | |
| Cutting Depth Maximum (CDX) | 22.5 mm | Arbor Style | A |
| Hub Diameter (DHUB) | 45 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 6.5 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 6 mm | Body Material | Steel |
| Usable Length (LU) | 28 mm | Unit | M |
| Flute Count (NOF) | 10 |
Product Features
| Family Description | Full slot cutters carrying LNET 08 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds. | FamilyName | FDN-LN08 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4850
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
FDN-LN08
BrandName
Iscar
