SDN D3.00-.187-08-LN08

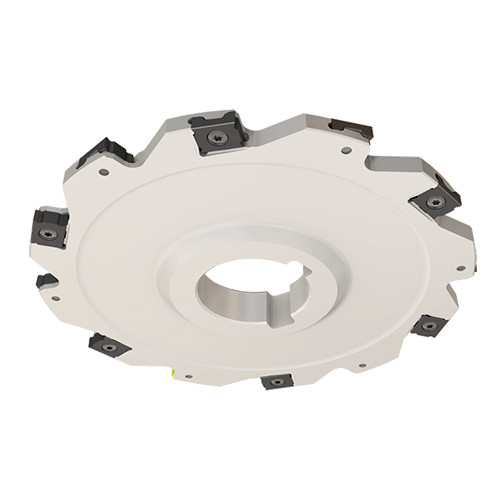

Disk type grooving and slitting cutters carrying tangentially clamped inserts with 4 cutting edges.
Price: Log in For Price
| Cutting Diameter (DC) | 3″ | Overall Length (OAL) | 0.312″ |
| Cutting Item Count (CICT) | 10 | Master Insert Identification (MIID) | LNET 083004-TN-N |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Application | | Side Slotting | Slitting | Slotting | |
| Cutting Depth Maximum (CDX) | 0.7″ | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 1-1/2″ | Measurement Type | Inch |
| Hub Thickness (THUB) | 0.312″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.207″ | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 0.187″ | Unit | I |
| Flute Count (NOF) | 10 |
Product Features
| Family Description | Disk type grooving and slitting cutters carrying tangentially clamped inserts with 4 cutting edges. | FamilyName | SDN-LN08 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2601
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
SDN-LN08
BrandName
Iscar
