SDN D063-04-22-LN08

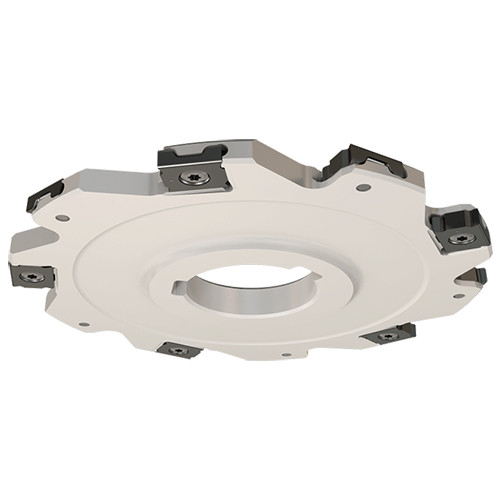

Disk type grooving and slitting cutters carrying tangentially clamped inserts with 4 cutting edges.
Price: Log in For Price

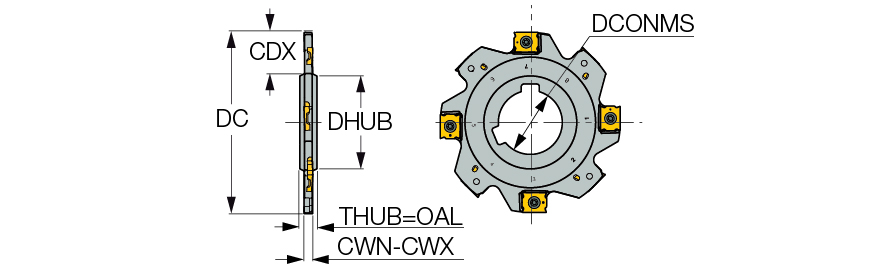

| Cutting Diameter (DC) | 63 mm | Flute Count (NOF) | 8 |

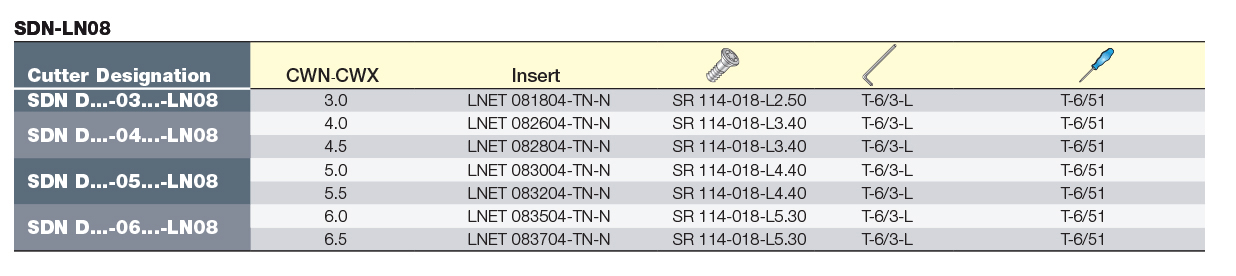

| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | LNET 082604-TN-N |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Application | | Side Slotting | Slitting | Slotting | |
| Cutting Depth Maximum (CDX) | 14.8 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 32 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 6 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 4.5 mm | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 4 mm | Unit | M |
Product Features
| Family Description | Disk type grooving and slitting cutters carrying tangentially clamped inserts with 4 cutting edges. | FamilyName | SDN-LN08 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1730
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
SDN-LN08
BrandName
Iscar
